Temp with MQTT HomeAssistant

15 Feb 2021

MQTT Broker

MQTT uses a Publish Topic in which other devices can Subscribe to, for example our temperature sensor has a topic of “temp” and publishes the current value of “23C” to our MQTT broker, other devices can subscribe to “temp” and the MQTT broker .

Install “Mosquitto” add-on from within Home Assistant, we will then edit the configuration providing a username and password.

logins:
  - username: mqttuser
    password: supersecretpassword
anonymous: false
customize:
  active: false
  folder: mosquitto
certfile: fullchain.pem
keyfile: privkey.pem
require_certificate: true

Download MQTT Explorer then connect to Home Assistant to test everything is working so far.

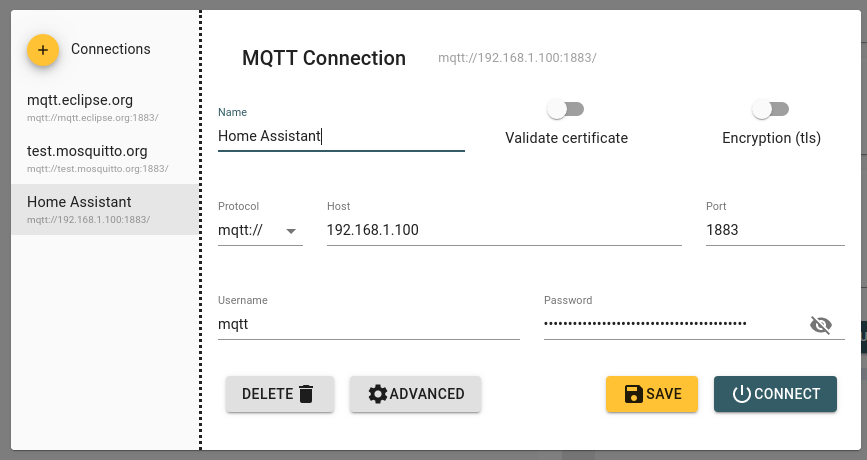

Connecting to MQTT using MQTT Explorer

Tasmota Confguration

I will be configuring a Wemos D1 Mini with a PIR (HC-SR501), Temperature and Humidity (DHT-11) sensors. I would not recommend these sensors for production or accurate use as the DHT-11 is quite inaccurate with its measurements, the DHT-22 sensor is more accurate but not as cheap.

Shopping List

If you have not flashed your device with Tasmota take a look at Flash D1 Mini with Tasmota article.

Once you have your flashed Wemos D1 Mini, you’ll need to change the module type to Generic (18), to do this go to Configuration > Configure Module from the webGUI.

  • Module Type: Generic (18)
  • D2 GPIO4: Switch - 2
  • D1 GPIO5: DHT11

Now configure your MQTT broker settings within Configuration > Configure MQTT

  • Host: Home Assistant IP
  • User: mqttuser
  • Password: supersecretpassword

Wiring Diagrams

Wemos D1 Mini Temperature and Humidity (DHT-11)

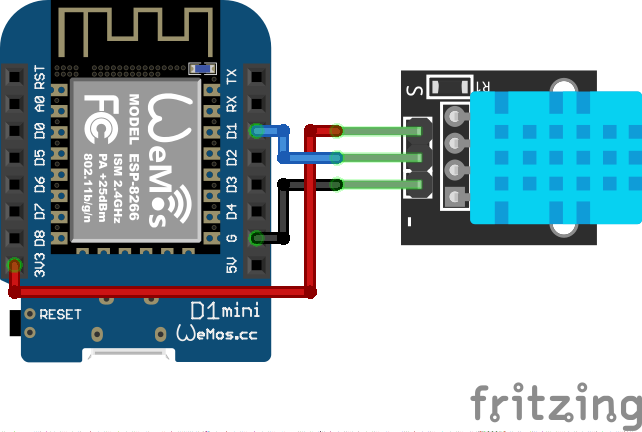

D1 Mini and DHT-11 Wiring Diagram

Wemos D1 Mini Motion (HC-SR501 PIR)

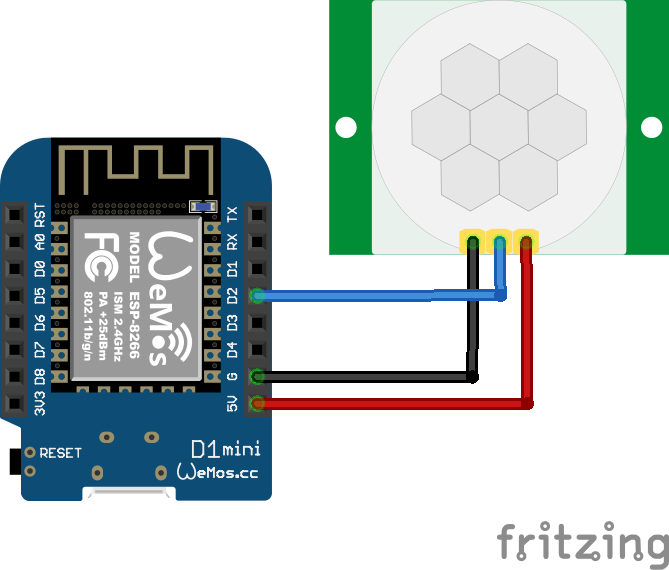

D1 Mini and HC-SR501 Wiring Diagram

I used a breadboard to connect my D1 Mini and the sensors as they can share power and ground.

Adding Home Assistant Entities

We can use MQTT Explorer to view the Tasmota device as it is now communicating with our MQTT broker.

We’ll need this to find the correct values of our sensors so we can create our Home Assistant entities.

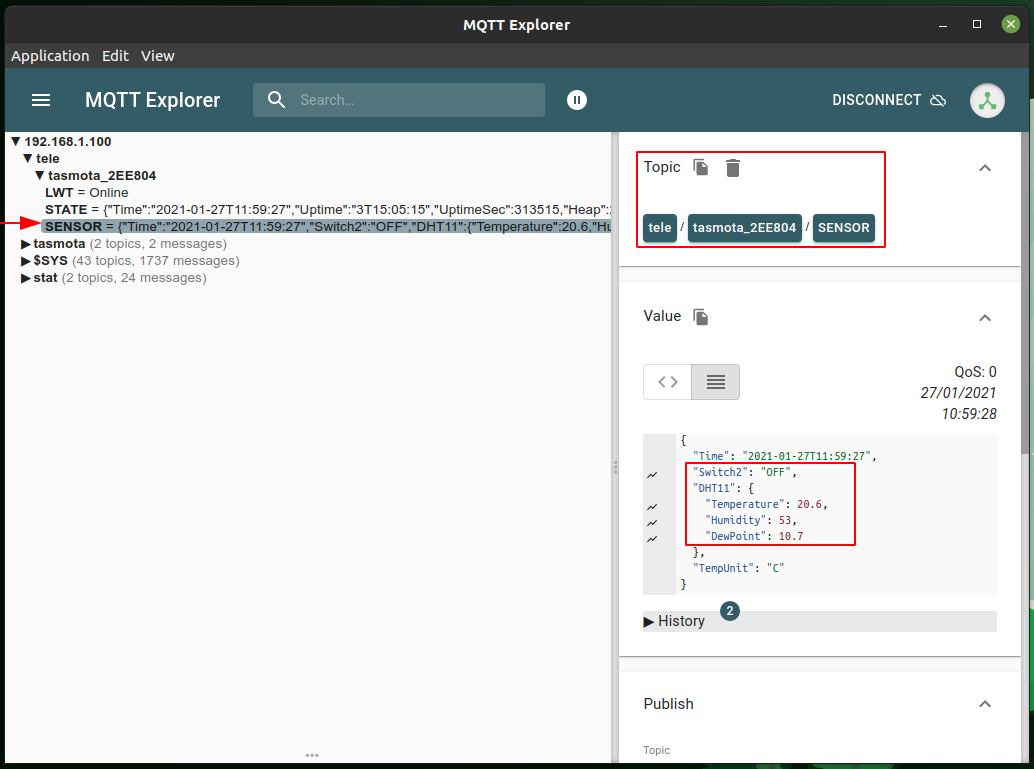

MQTT Explorer Tasmota Topic

The state_topic is copied from the Topic in MQTT Explorer and the value_template is created using what type of data we want, in this case JSON, from our DHT11 sensor with the value of Temperature. The availability_topic and payload_available content is standard device availability configuration.

Temperature & Humidity using a DHT-11

Home Assistant - Sensor

sensor:
  - platform: mqtt
    state_topic: 'tele/tasmota_2EE804/SENSOR'
    name: 'temperature'
    unit_of_measurement: '°C'
    value_template: ''
    availability_topic: 'tele/tasmota_2EE804/LWT'
    payload_available: Online
    payload_not_available: Offline
    device_class: temperature

  - platform: mqtt
    state_topic: 'tele/tasmota_2EE804/SENSOR'
    name: 'humidity'
    unit_of_measurement: '%'
    value_template: ''
    availability_topic: 'tele/tasmota_2EE804/LWT'
    payload_available: Online
    payload_not_available: Offline
    device_class: humidity

Motion Detection using a HC-SR501

Home Assistant - Binary Sensor

binary_sensor:
  - platform: mqtt
    state_topic: "tele/tasmota_2EE804/SENSOR"
    name: "D1 Motion"
    value_template: ''
    availability_topic: 'tele/tasmota_2EE804/LWT'
    payload_available: Online
    payload_not_available: Offline
    device_class: motion

Check your configuration and restart Home Assistant, on your overview dashboard you’ll now see three additional sensors.

By default this information will be polled every 5 minutes.

Home Assistant Badges - Motion, Temperature and Humidity

I would suggest using a DHT-22 sensor over the DHT-11 as it is vastly more accurate.
